! Fehér háttér
/RGB/RGB, Kywrd, PRED, PGRN, PBLU, N1, N2, NINC, NCNTR
Specifies the RGB color values for indices and contours.,INDEX,100,100,100,0
/RGB/RGB, Kywrd, PRED, PGRN, PBLU, N1, N2, NINC, NCNTR
Specifies the RGB color values for indices and contours.,INDEX,0,0,0,15
! Konstans paraméterek definiálása
A=100
R1=10
R2=20
!
MU=0.2424
LAMBDA=20.25
D=0
! Elemtípus kiválasztása
ETET, ITYPE, Ename, KOP1, KOP2, KOP3, KOP4, KOP5, KOP6, INOPR
Defines a local element type from the element library.,1,PLANE182
! Síkfeszültségi állapot
KEYOPTKEYOPT, ITYPE, KNUM, VALUE
Sets element key options.,1,3,0
! Anyagmodell definiálása
TBTB, Lab, MAT, NTEMP, NPTS, TBOPT, EOSOPT, FuncName
Activates a data table for material properties or special element input.,HYPE,1,1,3,BOYC
TBTEMPTBTEMP, TEMP, KMOD
Defines a temperature for a material data table.,0
TBDATATBDATA, STLOC, C1, C2, C3, C4, C5, C6
Defines data for the material data table.,,MUMU = 0.2424,LAMBDALAMBDA = 20.25,DD = 0
! Modellezés
BLC4BLC4, XCORNER, YCORNER, WIDTH, HEIGHT, DEPTH
Creates a rectangular area or block volume by corner points.,0,0,AA = 100,AA = 100
CYL4CYL4, XCENTER, YCENTER, RAD1, THETA1, RAD2, THETA2, DEPTH
Creates a circular area or cylindrical volume anywhere on the working plane.,AA = 100/4,AA = 100/4,R1R1 = 10
CYL4CYL4, XCENTER, YCENTER, RAD1, THETA1, RAD2, THETA2, DEPTH
Creates a circular area or cylindrical volume anywhere on the working plane.,3*A/4,25,R1R1 = 10
CYL4CYL4, XCENTER, YCENTER, RAD1, THETA1, RAD2, THETA2, DEPTH
Creates a circular area or cylindrical volume anywhere on the working plane.,AA = 100/4,3*A/4,R1R1 = 10
CYL4CYL4, XCENTER, YCENTER, RAD1, THETA1, RAD2, THETA2, DEPTH
Creates a circular area or cylindrical volume anywhere on the working plane.,3*A/4,3*A/4,R1R1 = 10
CYL4CYL4, XCENTER, YCENTER, RAD1, THETA1, RAD2, THETA2, DEPTH
Creates a circular area or cylindrical volume anywhere on the working plane.,AA = 100/2,AA = 100/2,r2
! Felületek kivonása egymásból
ASBAASBA, NA1, NA2, SEPO, KEEP1, KEEP2
Subtracts areas from areas.,1,ALL
! Elemméret beállítása
AESIZEAESIZE, ANUM, SIZE,
Specifies the element size to be meshed onto areas.,ALL,0.3*R1
AMESHAMESH, NA1, NA2, NINC

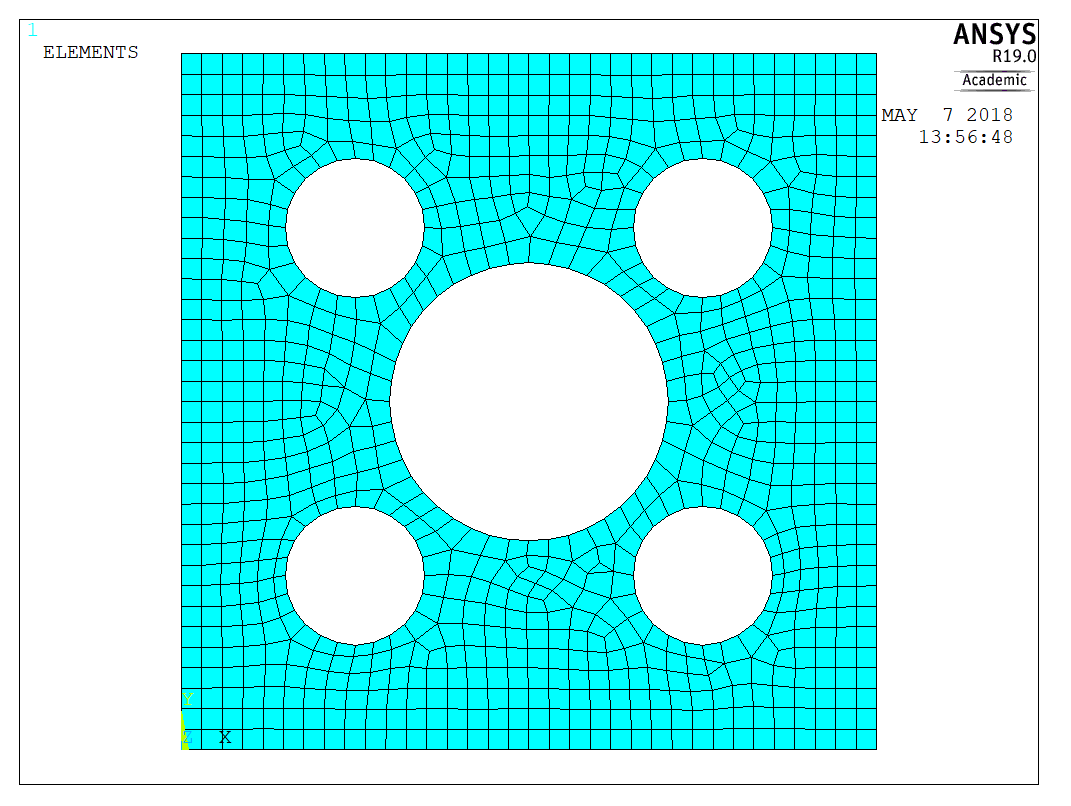

Generates nodes and area elements within areas.,ALL!Végeselemes háló
FINISHFINISH
Exits normally from a processor.
! Megfogás
DLDL, LINE, AREA, Lab, Value1, Value2
Defines DOF constraints on lines.,1,,UY,0
DLDL, LINE, AREA, Lab, Value1, Value2
Defines DOF constraints on lines.,4,,UX,0
! Elmozdulás
DLDL, LINE, AREA, Lab, Value1, Value2
Defines DOF constraints on lines.,3,,UY,5*a
DLDL, LINE, AREA, Lab, Value1, Value2
Defines DOF constraints on lines.,2,,UX,5*a
! Megoldó paramétereinek megadása
NLGEOMNLGEOM, Key
Includes large-deflection effects in a static or full transient analysis.,1
NSUBSTNSUBST, NSBSTP, NSBMX, NSBMN, Carry
Specifies the number of substeps to be taken this load step.,20
OUTRESOUTRES, Item, Freq, Cname, -- , NSVAR, DSUBres
Controls the solution data written to the database.,ALL,ALL
AUTOTSAUTOTS, Key
Specifies whether to use automatic time stepping or load stepping.,0
SOLVESOLVE, Action
Starts a solution.
FINISHFINISH
Exits normally from a processor.
!
/POST26/POST26
Enters the time-history results postprocessor.
ANSOLANSOL, NVAR, NODE, Item, Comp, Name, Mat, Real, Ename
Specifies averaged nodal data to be stored from the results file in the solution coordinate system.,2,230,S,EQV
XVARXVAR, N
Specifies the X variable to be displayed.,1
PLVARPLVAR, NVAR1, NVAR2, NVAR3, NVAR4, NVAR5, NVAR6, NVAR7, NVAR8, NVAR9, NVAR10

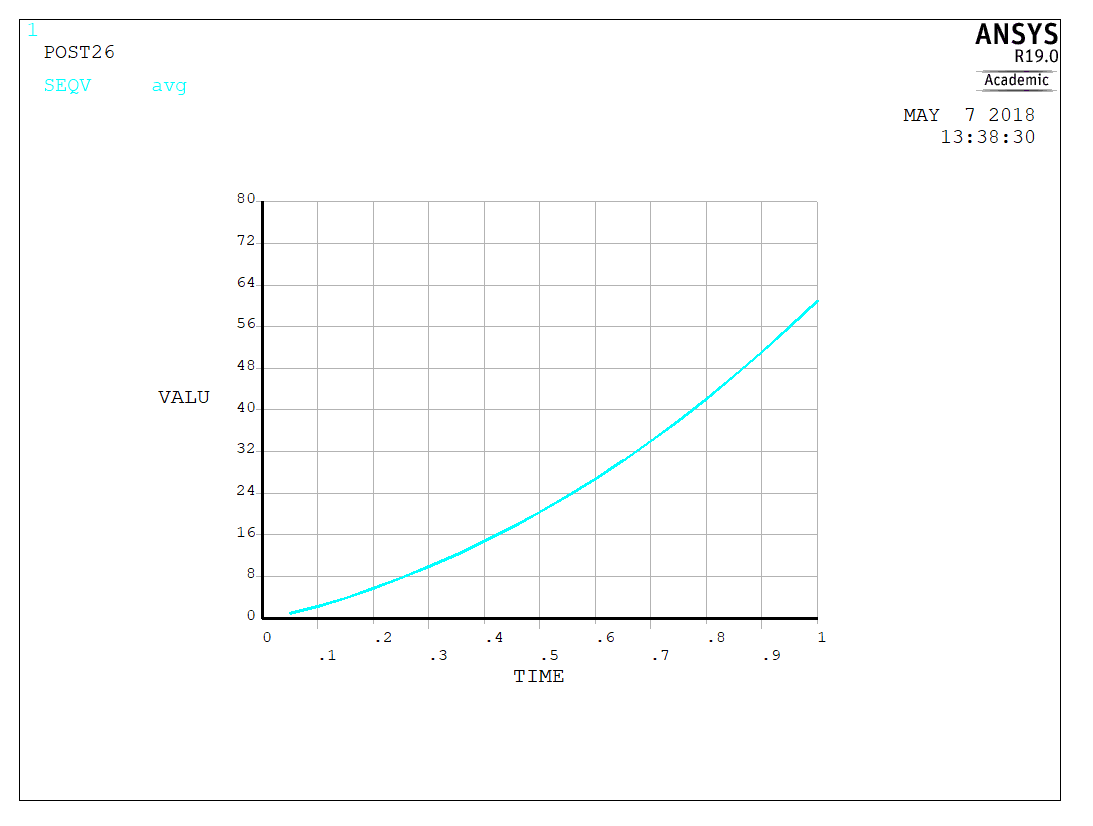

Displays up to ten variables in the form of a graph.,2!Feszültség elmozdulás függvény.
FINISHFINISH
Exits normally from a processor.
!
/POST1/POST1
Enters the database results postprocessor.
SETSET, Lstep, Sbstep, Fact, KIMG, TIME, ANGLE, NSET, ORDER
Defines the data set to be read from the results file.,,,,,,,20
PLNSOLPLNSOL, Item, Comp, KUND, Fact, FileID

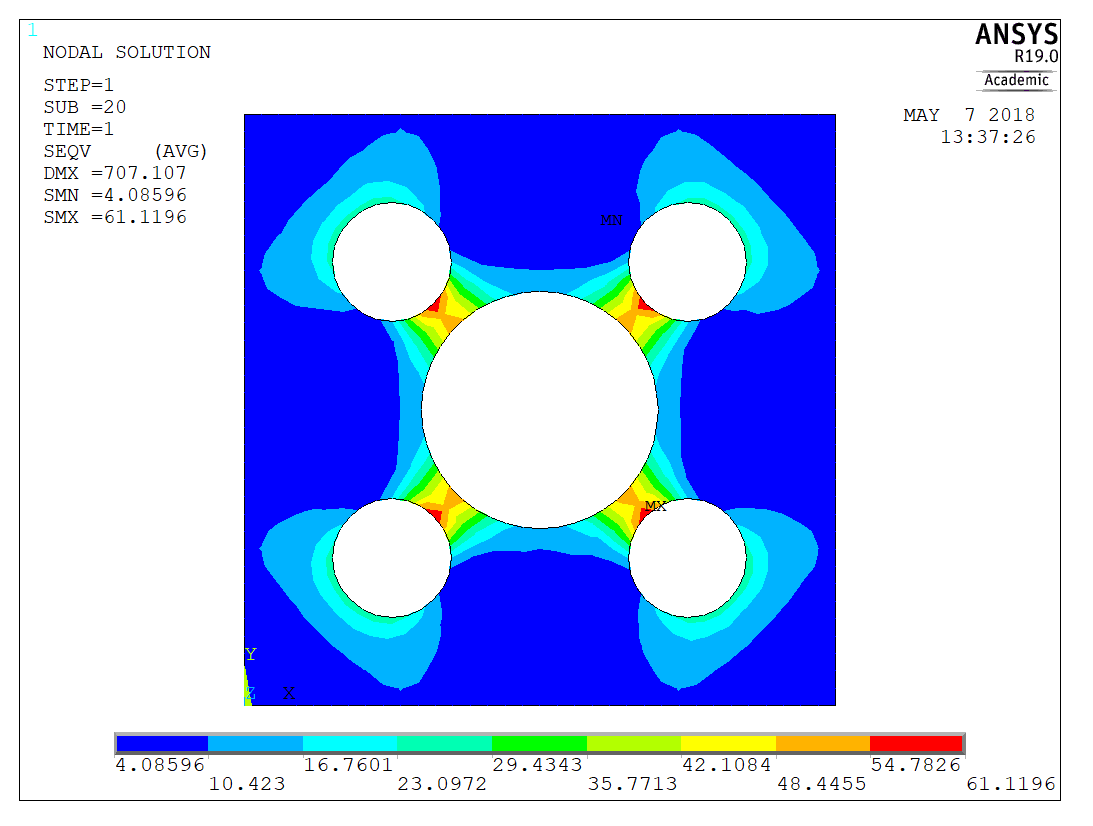

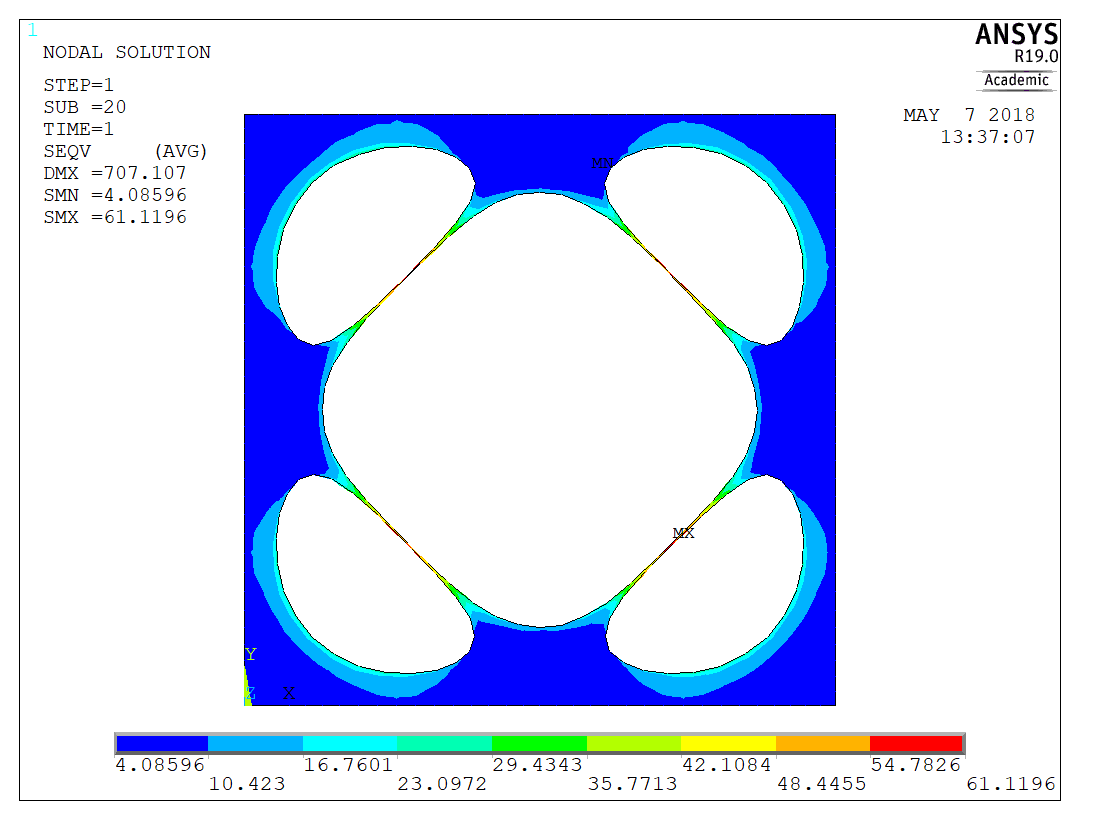

Displays results as continuous contours.,S,EQV

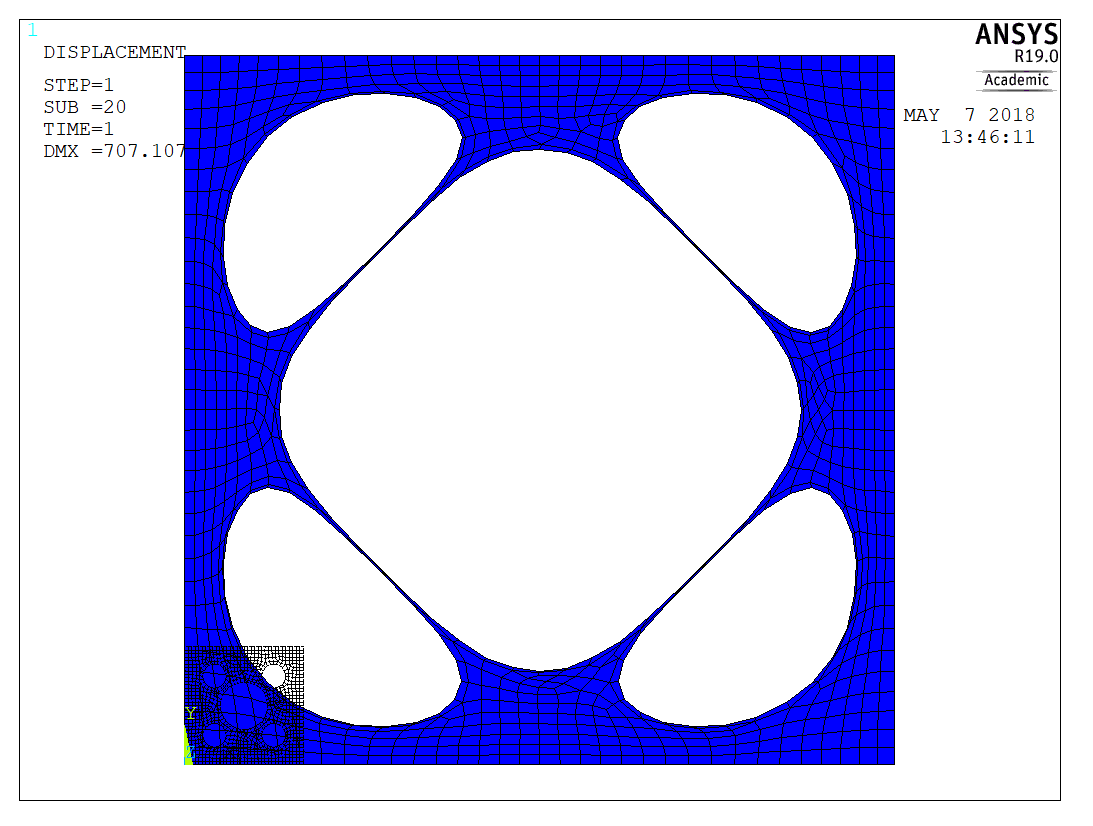

ANCNTRANCNTR, NFRAM, DELAY, NCYCL
Produces an animated sequence of a contoured deformed shape.,20,0.1
