! White canvas
/RGB/RGB, Kywrd, PRED, PGRN, PBLU, N1, N2, NINC, NCNTR
Specifies the RGB color values for indices and contours.,INDEX,100,100,100,0
/RGB/RGB, Kywrd, PRED, PGRN, PBLU, N1, N2, NINC, NCNTR
Specifies the RGB color values for indices and contours.,INDEX,0,0,0,15
/VIEW/VIEW, WN, XV, YV, ZV
Defines the viewing direction for the display.,1,1,1,1
/ANG/ANGLE, WN, THETA, Axis, KINCR
Rotates the display about an axis.,1
/REP/REPLOT, Label
Automatically reissues the last display command for convenience.,FAST
! Define constant parameters
! Units: [N],[Nm],[N/m^2=Pa],[N/m]
ELAST = 68.95E9
NU = 0.3
R = 0.5
H = 1.8
T = R/40
F = 450E3
P = 10E6
NDIV1 = 10
NDIV2 = 15
!
MPTEMPMPTEMP, SLOC, T1, T2, T3, T4, T5, T6
Defines a temperature table for material properties.,1,0
MPDATAMPDATA, Lab, MAT, SLOC, C1, C2, C3, C4, C5, C6
Defines property data to be associated with the temperature table.,EX,1,,ELAST
MPDATAMPDATA, Lab, MAT, SLOC, C1, C2, C3, C4, C5, C6
Defines property data to be associated with the temperature table.,PRXY,1,,NU
TBTB, Lab, MAT, NTEMP, NPTS, TBOPT, EOSOPT, FuncName
Activates a data table for material properties or special element input.,MISO,1,1,20
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00300,206.84E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00350,227.81E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00400,236.49E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00450,243.16E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00500,248.75E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00550,253.73E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00600,258.20E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00650,262.61E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00700,266.14E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00750,269.75E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00800,273.14E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00850,276.38E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00875,277.94E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00900,279.47E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00925,280.97E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00950,282.44E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.00975,283.88E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.02400,342.72E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.04000,387.21E6
TBPTTBPT, Oper, X1, X2, X3, ..., XN
Defines a point on a nonlinear data curve.,,0.06300,436.53E6

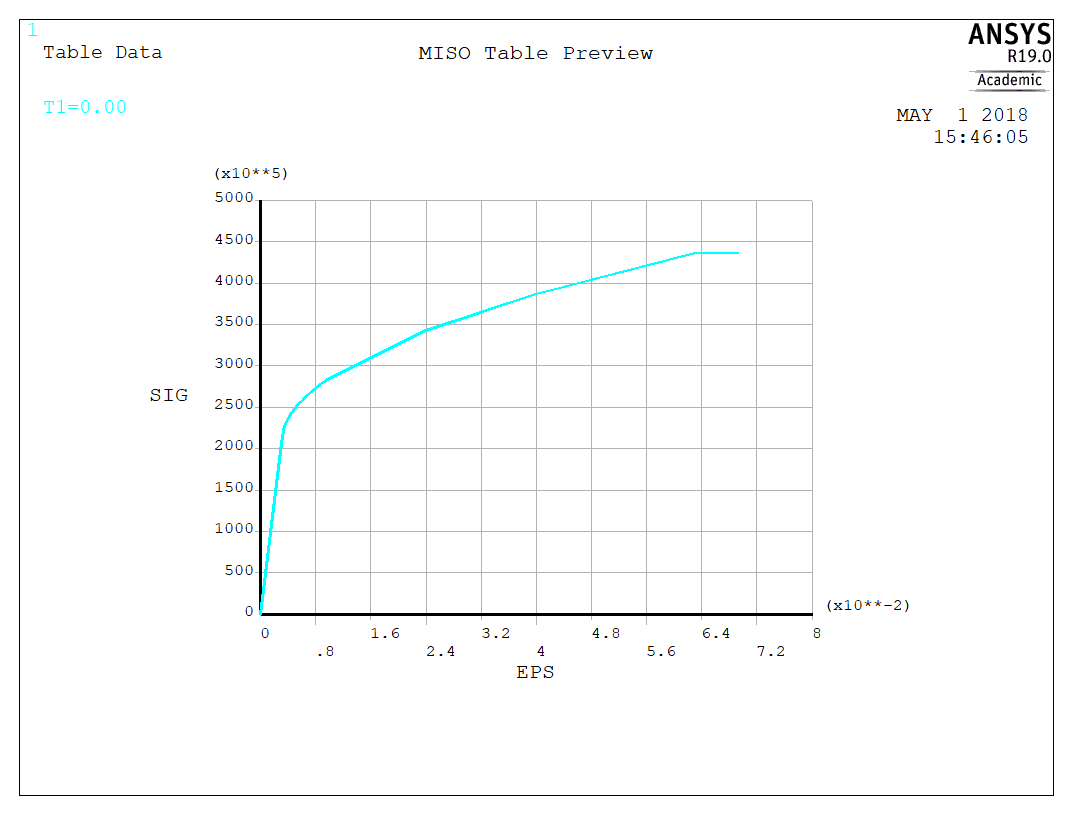

! Click here to see stress-strain diagram!
!
SECTSECTYPE, SECID, Type, Subtype, Name, REFINEKEY
Associates section type information with a section ID number.,1,SHELL
SECDATASECDATA, VAL1, VAL2, VAL3, VAL4, VAL5, VAL6, VAL7, VAL8, VAL9, VAL10, VAL11, VAL12
Describes the geometry of a section.,T,1,0.0,3
SECOFFSETSECOFFSET, Location, OFFSET1, OFFSET2, CG-Y, CG-Z, SH-Y, SH-Z
Defines the section offset for cross sections.,MID
!
MPTEMPMPTEMP, SLOC, T1, T2, T3, T4, T5, T6
Defines a temperature table for material properties.,1,0
MPDATAMPDATA, Lab, MAT, SLOC, C1, C2, C3, C4, C5, C6
Defines property data to be associated with the temperature table.,EX,2,,6.894757E14
MPDATAMPDATA, Lab, MAT, SLOC, C1, C2, C3, C4, C5, C6
Defines property data to be associated with the temperature table.,PRXY,2,,0
!
VDELEVDELE, NV1, NV2, NINC, KSWP
Deletes unmeshed volumes.,1
ADELEADELE, NA1, NA2, NINC, KSWP
Deletes unmeshed areas.,1,2
!
LL, P1, P2, NDIV, SPACE, XV1, YV1, ZV1, XV2, YV2, ZV2
Defines a line between two keypoints.,1,8
LL, P1, P2, NDIV, SPACE, XV1, YV1, ZV1, XV2, YV2, ZV2
Defines a line between two keypoints.,4,6
ASBLASBL, NA, NL, --, KEEPA, KEEPL
Subtracts lines from areas.,3,12
ASBLASBL, NA, NL, --, KEEPA, KEEPL
Subtracts lines from areas.,4,11
!
WPOFFSWPOFFS, XOFF, YOFF, ZOFF
Offsets the working plane.,0,0,H
!
PCIRCPCIRC, RAD1, RAD2, THETA1, THETA2
Creates a circular area centered about the working plane origin.,,R,0,90
PCIRCPCIRC, RAD1, RAD2, THETA1, THETA2
Creates a circular area centered about the working plane origin.,R,1.5*R,0,90
ARSYMARSYM, Ncomp, NA1, NA2, NINC, KINC, NOELEM, IMOVE
Generates areas from an area pattern by symmetry reflection.,X,4,6,2
!*
ARSYMARSYM, Ncomp, NA1, NA2, NINC, KINC, NOELEM, IMOVE
Generates areas from an area pattern by symmetry reflection.,Y,4,8,2
ARSYMARSYM, Ncomp, NA1, NA2, NINC, KINC, NOELEM, IMOVE
Generates areas from an area pattern by symmetry reflection.,Y,7
!*
NUMMRGNUMMRG, Label, TOLER, GTOLER, Action, Switch
Merges coincident or equivalently defined items.,KP,0.01
! Setting number of elements along lines
*DO*DO, Par, IVAL, FVAL, INC
Defines the beginning of a do-loop.,III,1,8
LESIZELESIZE, NL1, SIZE, ANGSIZ, NDIV, SPACE, KFORC, LAYER1, LAYER2, KYNDIV
Specifies the divisions and spacing ratio on unmeshed lines.,III,,,NDIV1
*ENDDO*ENDDO
Ends a do-loop and starts the looping action.
*DO*DO, Par, IVAL, FVAL, INC
Defines the beginning of a do-loop.,III,9,12
LESIZELESIZE, NL1, SIZE, ANGSIZ, NDIV, SPACE, KFORC, LAYER1, LAYER2, KYNDIV
Specifies the divisions and spacing ratio on unmeshed lines.,III,,,NDIV2
*ENDDO*ENDDO
Ends a do-loop and starts the looping action.
! Mapped meshing of areas
MSHKEYMSHKEY, KEY
Specifies whether free meshing or mapped meshing should be used to mesh a model.,1
AMESHAMESH, NA1, NA2, NINC
Generates nodes and area elements within areas.,ALL

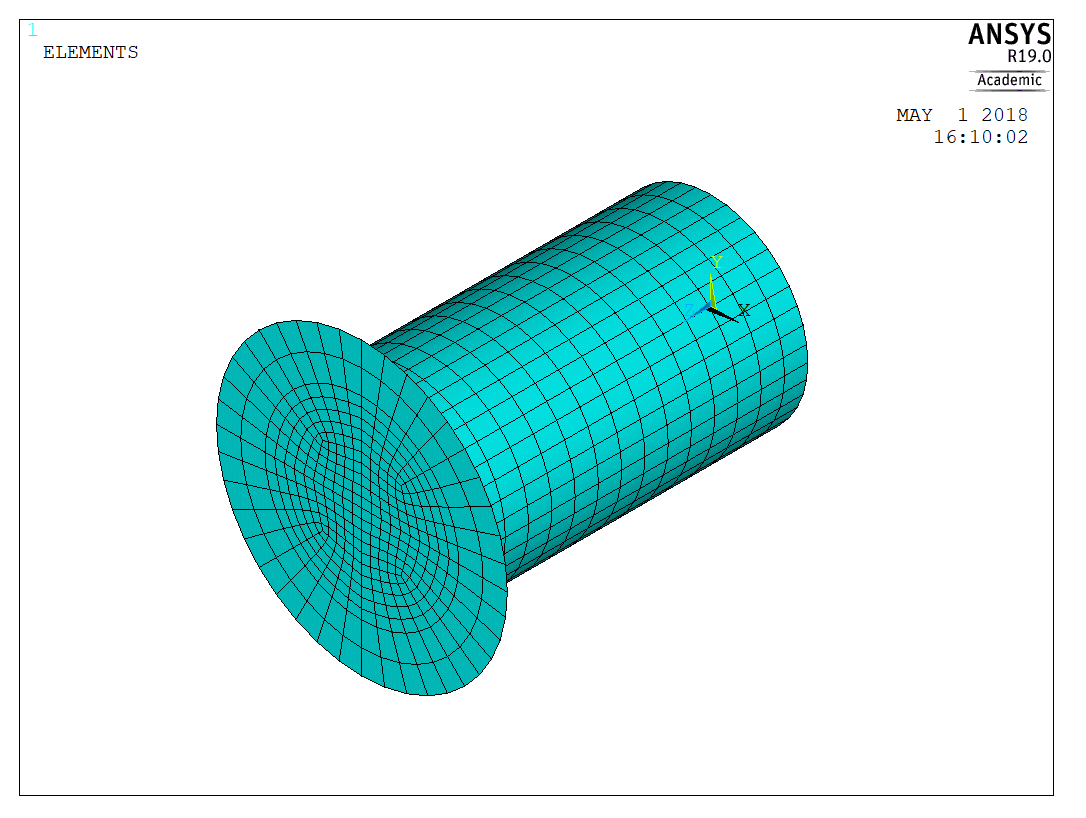

! Click here to see image!
! Load step 1
! Defining kinematic and dynamic constraints
LSELLSEL, Type, Item, Comp, VMIN, VMAX, VINC, KSWP
Selects a subset of lines.,S,LOC,Z,0
DLDL, LINE, AREA, Lab, Value1, Value2
Defines DOF constraints on lines.,ALL,,ALL,0
ALLSELALLSEL, LabT, Entity
Selects all entities with a single command.,ALL
SFASFA, Area, LKEY, Lab, VALUE, VALUE2
Specifies surface loads on the selected areas.,1,1,PRES,P
SFASFA, Area, LKEY, Lab, VALUE, VALUE2
Specifies surface loads on the selected areas.,2,1,PRES,P
SFASFA, Area, LKEY, Lab, VALUE, VALUE2
Specifies surface loads on the selected areas.,3,1,PRES,P
SFASFA, Area, LKEY, Lab, VALUE, VALUE2
Specifies surface loads on the selected areas.,5,1,PRES,P
LSWRITELSWRITE, LSNUM
Writes load and load step option data to a file.,1
! Load step 2
! Defining additional dynamic constraints
FKFK, KPOI, Lab, VALUE, VALUE2
Defines force loads at keypoints.,12,FY,F
FKFK, KPOI, Lab, VALUE, VALUE2
Defines force loads at keypoints.,13,FX,-F
FKFK, KPOI, Lab, VALUE, VALUE2
Defines force loads at keypoints.,19,FY,-F
FKFK, KPOI, Lab, VALUE, VALUE2
Defines force loads at keypoints.,27,FX,F
LSWRITELSWRITE, LSNUM
Writes load and load step option data to a file.,2
FINISHFINISH
Exits normally from a processor.
! Solution of load cases
/SOL/SOLU
Enters the solution processor.
/STATUS/STATUS, Lab
Lists the status of items for the run.,SOLU
LSSOLVELSSOLVE, LSMIN, LSMAX, LSINC
Reads and solves multiple load steps.,1,2
FINISHFINISH
Exits normally from a processor.
! Cylindrical coordinatesystem for results
! x - radial, y - tangential, z - axial
RSYSRSYS, KCN
Activates a coordinate system for printout or display of element and nodal results.,1
LCDEFLCDEF, LCNO, LSTEP, SBSTEP, KIMG
Creates a load case from a set of results on a results file.,1,1,Last
LCDEFLCDEF, LCNO, LSTEP, SBSTEP, KIMG
Creates a load case from a set of results on a results file.,2,2,Last
!
LCASELCASE, LCNO
Reads a load case into the database.,1
! Total deformation
PLNSOLPLNSOL, Item, Comp, KUND, Fact, FileID

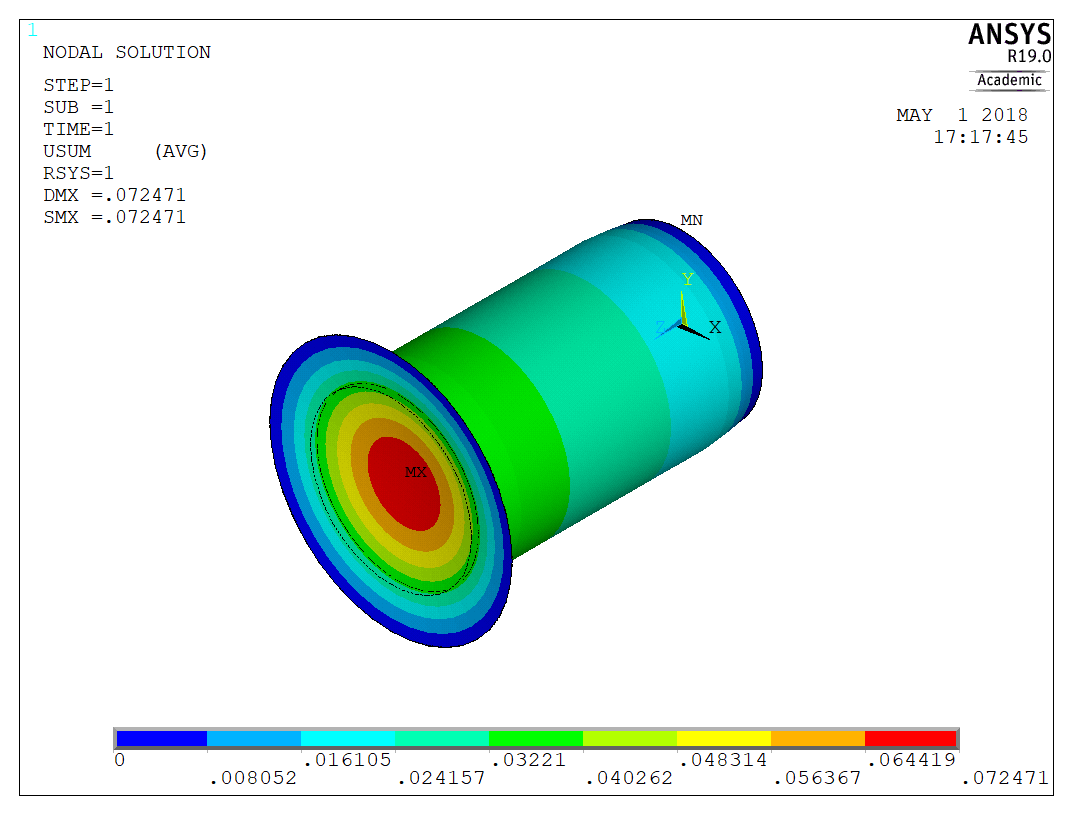

Displays results as continuous contours.,U,SUM,2,1.0! Click here to see image
! First principal stress
PLNSOLPLNSOL, Item, Comp, KUND, Fact, FileID

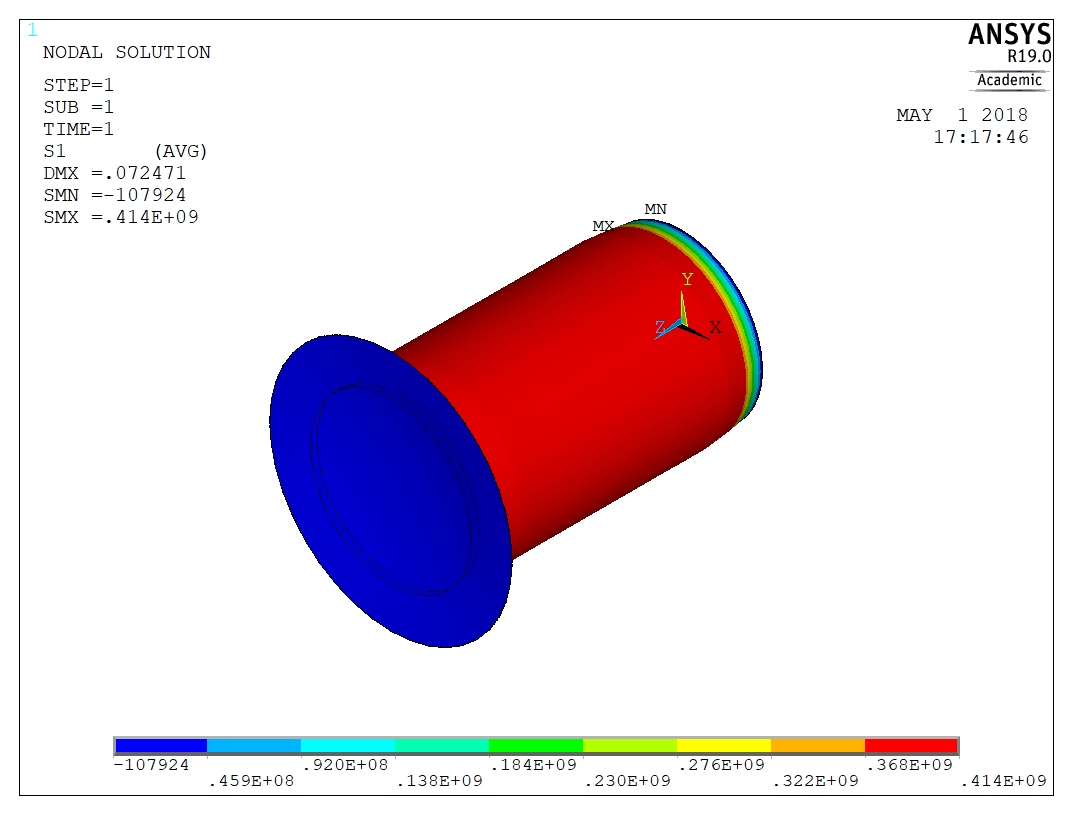

Displays results as continuous contours.,S,1,2,1.0! Click here to see image
!
LCASELCASE, LCNO
Reads a load case into the database.,2
! Total deformation
PLNSOLPLNSOL, Item, Comp, KUND, Fact, FileID
Displays results as continuous contours.,U,SUM,2,1.0! Click here to see image
! First principal stress
PLNSOLPLNSOL, Item, Comp, KUND, Fact, FileID
Displays results as continuous contours.,S,1,2,1.0! Click here to see image
! Stress distribution along an edge
PATHPATH, NAME, nPts, nSets, nDiv
Defines a path name and establishes parameters for the path.,EDGE,2,30,100
PPATHPPATH, POINT, NODE, X, Y, Z, CS
Defines a path by picking or defining nodes, or locations on the currently active working plane, or by entering specific coordinate locations.,1,NODE(R,0,0)
PPATHPPATH, POINT, NODE, X, Y, Z, CS
Defines a path by picking or defining nodes, or locations on the currently active working plane, or by entering specific coordinate locations.,2,NODE(R,0,H)
PDEFPDEF, Lab, Item, Comp, Avglab
Interpolates an item onto a path.,SRAD,S,X,NOAVG
PDEFPDEF, Lab, Item, Comp, Avglab
Interpolates an item onto a path.,STAN,S,Y,NOAVG
PDEFPDEF, Lab, Item, Comp, Avglab
Interpolates an item onto a path.,SAX,S,Z,NOAVG
/AXLAB/AXLAB, Axis, Lab
Labels the X and Y axes on graph displays.,X,'z [m]'
/AXLAB/AXLAB, Axis, Lab
Labels the X and Y axes on graph displays.,Y,'sig [Pa]'
PLPATHPLPATH, Lab1, Lab2, Lab3, Lab4, Lab5, Lab6

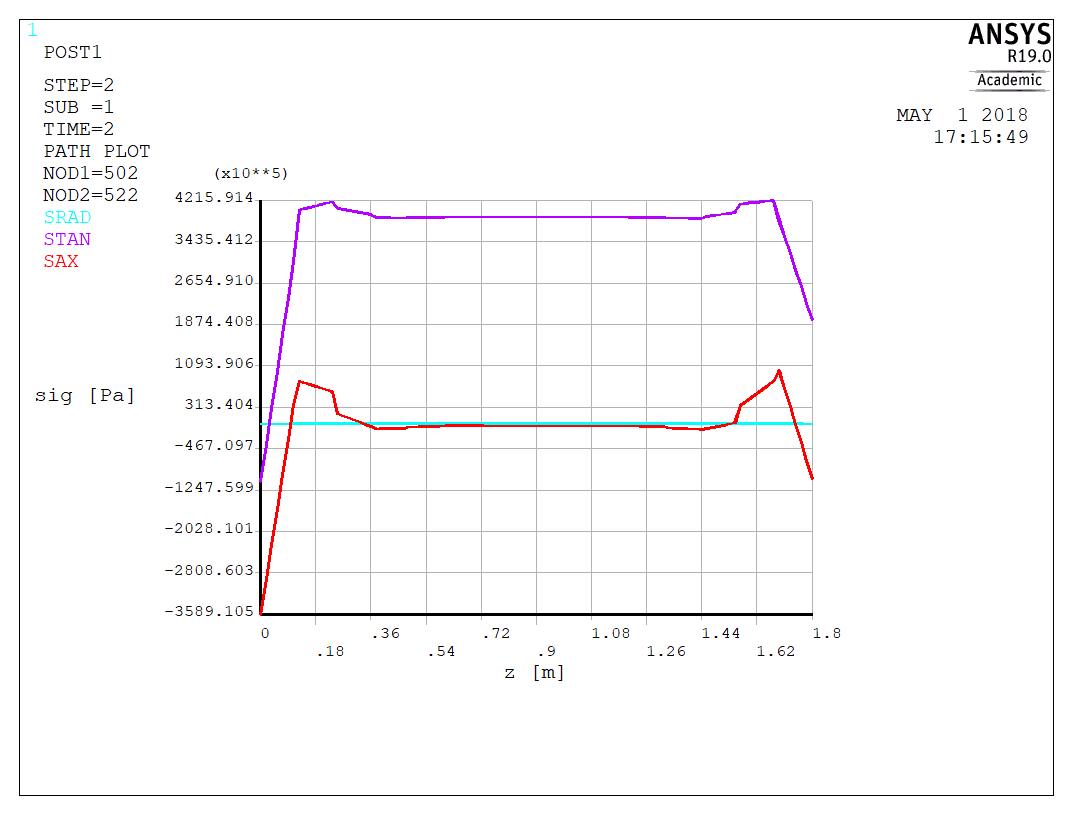

Displays path items on a graph.,SRAD,STAN,SAX! Click here to see image
